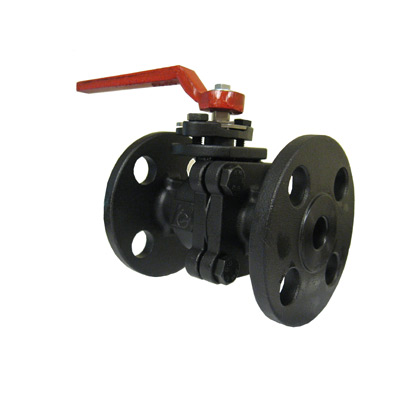

LC-235F-F-Two piece Carbon Steel Flanged Ball valve

LC-235F-F Series

2-Piece Carbon Steel Full Port Flanged Ball Valve

• Class 150
• Flanged Ends
• ISO 5211 Mounting Pad
• API 607 Fire-Safe Designed

Valve Features

• Split body design with flanged ends for fast installation, in-line maintenance and rebuilding. Solid ball construction provides structural integrity and minimizes flow turbulence.
• Body join is designed to prevent excessive compression of valve internals, resulting in consistent and low operating torque.
• Mounting pad complied with ISO 5211 for ease and interchangeability of actuation
• Bottom-loaded blow-out proof stem.
• Investment cast body & cap on sizes ½” to 4″. Sand cast body & cap on sizes 5″ to 10″.
• Basic design complied with ASME/ANSI B16.34
• Flanged ends complied with ASME/ANSI B16.5
• Face-to-face dimensions complied with ASME/ANSI B16.10
• Graphite gasket & stem packing prevent post-fire external leakage.
• Post-fire metal-to-metal seal prevents internal leakage after fire. Tested according to API 598 & ANSI B 16.34

Valve Options

• A: Anti-static Device
• V: Vented ball
• G: Equipped with gear operator
• P: Equipped with pneumatic actuator
